More Than15 Years Carbon Fiber Bike Frame Manufacturer In China - Mondince

Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 1
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 2
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 3
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 4
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 5
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 1
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 2
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 3
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 4
Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378 5

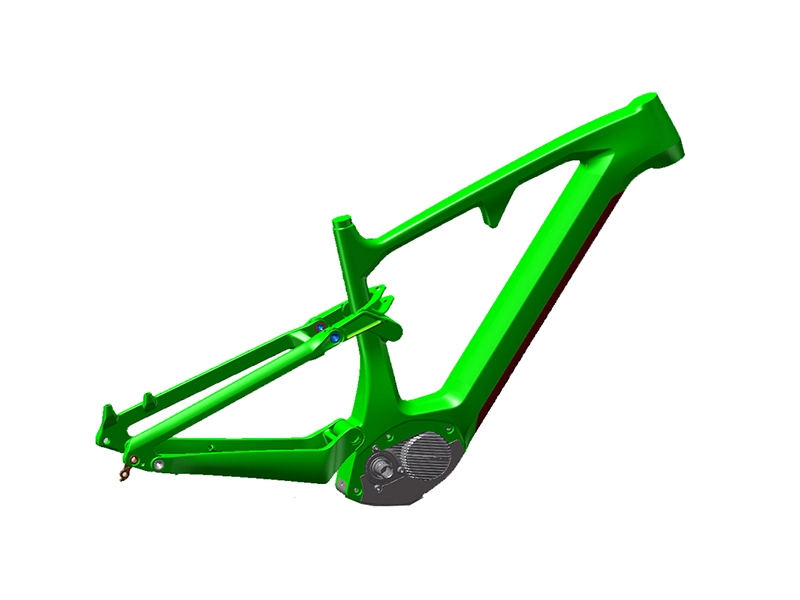

Shimano EP8 Motor 27.5*3.0''Tire 200MM Travel Dual Suspension MTB Ebike Frame FM378

Key Features:

INTERNAL CABLE ROUTING

SHIMANO MOTOR AND BATTERY

POST MOUNT 160MM DISC BRAKE

HEADTUBE: 1/8" (TOP) , 1-/2" ( DOWN)

THRU AXLE VERSION

    oops...!

    no product data.

    Go to homepage

    Product Specifications

    Frame Type Shimano EP8 Motor Ebike Suspension Frame
    Color All Color Avaliable
    Material Toray T800/T1000
    Carbon Weave UD/3K
    Frame Size M/L/XL
    Weight 3500/+-30g (L)
    Fork Fox Or Rock Shock 200MM Travel
    Seatpost  31.6MM
    Rear Shock 230*65/60MM
    Headtube 1-1/8'' Up, 1-1/2'' Down
    Bottom Bracket Shimano EP8 Motor
    Max Tire 27.5*3.0''
    Disc Brake Post Mount 160MM Front And Rear
    Dropout  15*110MM Front/12*148MM Rear
    Test Standard ISO4210
    Waranty Two Years

    Size Chart

    Pro13_6

    Detail Picture

    Pro13_7
    Pro13_7
    Pro13_8
    Pro13_8
    Pro13_9
    Pro13_9
    Pro13_10
    Pro13_10
    Pro13_11
    Pro13_11

    FAQs

    1
    What is the quality of your material?
    All our carbon fiber is Toray T800 and T1000 carbon fiber. The stiffness and surface are very good.
    2
    Are you a factory or trading company?
    Of course, we are factory located in Huizhou from 2007. Please feel free to work with us. Good quality, fast respond, competitive price.
    3
    What is the MOQ per model?
    Our MOQ per model is 50 sets. You can order different sizes. As for samples, we accept one or two if we have stock.
    4
    Do you provide customzied painting?
    Yes, we can do that. We have our own painting workshop. Just share with us your painting design and decals.
    5
    What is your normal lead time?
    Our lead time is 15-20 days if we have stock for customzied painting. It will need 60 working days without stock.
    6
    What is the warranty time?
    We have two years warranty for the frame, one year for the fork, post and bar. Only the products have manufacturer defect.
    7
    Which test you do for the frame?
    All frames will be passed ISO4210 test standard before production. And we will test each frame's stiffness before painting.
    8
    Do you accept private mould?
    Yes, we have desigers and R&D department in our factory. We do OEM/ODM service for many famous brands in USA, EU, Canada.
