More Than15 Years Carbon Fiber Bike Frame Manufacturer In China - Mondince

Gravel Bike Carbon Frame Mondince 1
Gravel Bike Carbon Frame Mondince 2
Gravel Bike Carbon Frame Mondince 3
Gravel Bike Carbon Frame Mondince 4
Gravel Bike Carbon Frame Mondince 5
Gravel Bike Carbon Frame Mondince 1
Gravel Bike Carbon Frame Mondince 2
Gravel Bike Carbon Frame Mondince 3
Gravel Bike Carbon Frame Mondince 4
Gravel Bike Carbon Frame Mondince 5

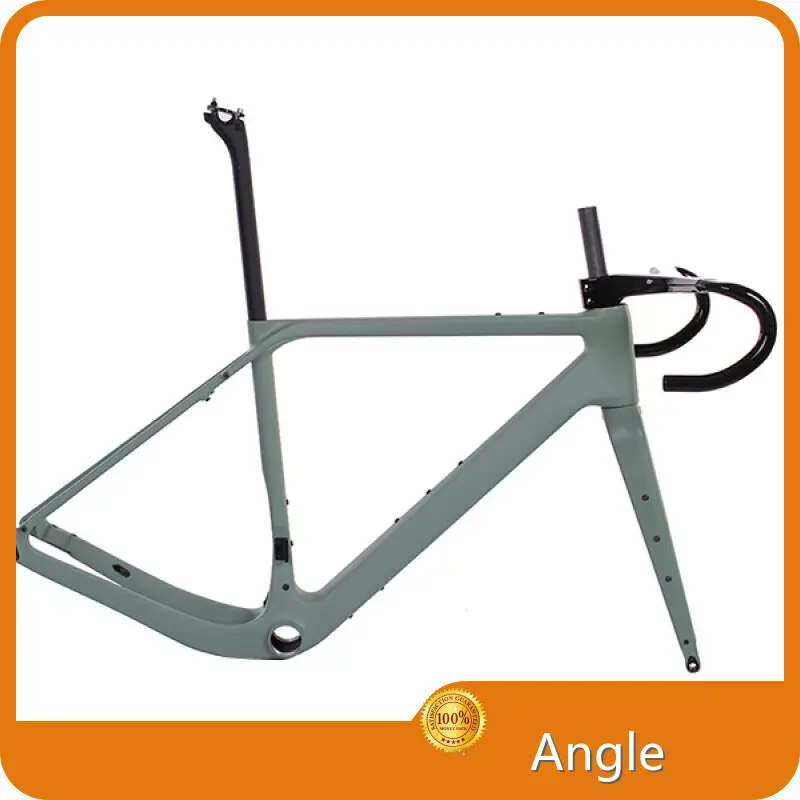

Gravel Bike Carbon Frame Mondince

Inquiry

Product details of the gravel bike carbon frame


Product Introduction

Mondince gravel bike carbon frame is produced with the latest technology that is well accepted in the industry. To guarantee products quality, our factory uses advanced testing equipment. Mondince has prospered from the quality assurance of gravel bike carbon frame.

Product Specifications

Frame Type Compacted Full Internal Routing Gravel Frameset
Color All Color Avaliable
Material Toray T800/T1000
Carbon Weave UD/3K
Frame Size XS/S/M/L/XL
Weight 1325/+-30g (L)
Fork 458/+-15g
Seatpost  27.2MM
Handlebar 400-90/100, 420-100/110, 440-110/120MM
Headtube 1-1/2'' Up And Down
Bottom Bracket BB386/T47
Max Tire 700*50C
Disc Brake Flat Mount 140/160MM Front And Rear
Dropout  12*100MM Front/12*142MM Rear
Test Standard ISO4210
Waranty Two Years

Size Chart

Pro22_6

Detail Picture

Pro22_7
Pro22_7
Pro22_8
Pro22_8
Pro22_9
Pro22_9
Pro22_10
Pro22_10
Pro22_11
Pro22_11

FAQs

1
What is the quality of your material?
All our carbon fiber is Toray T800 and T1000 carbon fiber. The stiffness and surface are very good.
2
Are you a factory or trading company?
Of course, we are factory located in Huizhou from 2007. Please feel free to work with us. Good quality, fast respond, competitive price.
3
What is the MOQ per model?
Our MOQ per model is 50 sets. You can order different sizes. As for samples, we accept one or two if we have stock.
4
Do you provide customzied painting?
Yes, we can do that. We have our own painting workshop. Just share with us your painting design and decals.
5
What is your normal lead time?
Our lead time is 15-20 days if we have stock for customzied painting. It will need 60 working days without stock.
6
What is the warranty time?
We have two years warranty for the frame, one year for the fork, post and bar. Only the products have manufacturer defect.
7
Which test you do for the frame?
All frames will be passed ISO4210 test standard before production. And we will test each frame's stiffness before painting.
8
Do you accept private mould?
Yes, we have desigers and R&D department in our factory. We do OEM/ODM service for many famous brands in USA, EU, Canada.


Company Advantage

• Our company combines 'introduction' with 'training' to build a high-quality talent team. At present, our company has a number of senior talents who are familiar with product production, enterprise management and capital operation.
• With the convenient highway access around our company and the great geographic location, our碳素自行车车架 is provided with convenient transportation.
• Established in Angle has been engaged in the production of 碳素自行车车架 for years. So far we have accumulated rich industry experience.
Enter your contact information and you will get the product information provided by Angle in the first time.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
