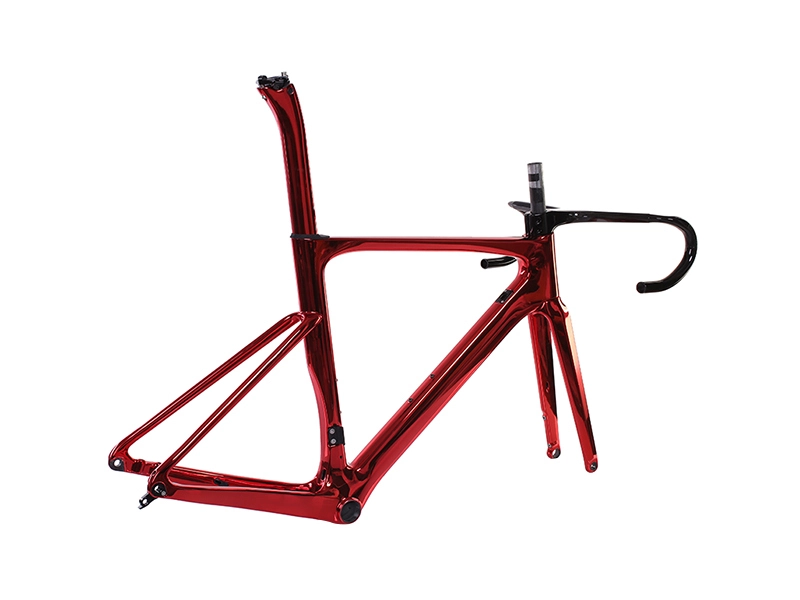

New Designed Fully Internal Cable Routing AERO Road Bike Frameset FM076

Key Features:

● FULLY INTERNAL CABLE ROUTING

BB86

FLAT MOUNT 140/160MM DISC BRAKE

HEADTUBE: 1-/2" (UP AND DOWN)

HIDDEN CLAMP

    oops...!

    no product data.

    Go to homepage

    Product Specifications

    Frame Type Aero Road Frameset
    Color All Color Avaliable
    Material Toray T800/T1000
    Carbon Weave UD/3K
    Frame Size 46/49/52/54/56/58CM
    Weight 1050+-30g (49cm)
    Fork 420+-15g
    Seatpost  Special Type(Hidden Clamp)
    Handlebar 380/90MM, 400/100MM, 420/110MM, 440/120MM
    Headtube 1-1/2'' Up And Down
    Bottom Bracket BB86 Press Fit
    Max Tire 700*38C
    Disc Brake Flat Mount 140/160MM Front And Rear
    Dropout  12*100MM Front/12*142MM Rear
    Test Standard ISO4210
    Waranty Two Years

    Size Chart

    Pro9-5

    Detail Picture

    Pro9-6
    Pro9-6
    Pro9-7
    Pro9-7
    Pro9-8
    Pro9-8
    Pro9-9
    Pro9-9
    Pro9-10
    Pro9-10

    FAQs

    1
    What is the quality of your material?
    All our carbon fiber is Toray T800 and T1000 carbon fiber. The stiffness and surface are very good.
    2
    Are you a factory or trading company?
    Of course, we are factory located in Huizhou from 2007. Please feel free to work with us. Good quality, fast respond, competitive price.
    3
    What is the MOQ per model?
    Our MOQ per model is 50 sets. You can order different sizes. As for samples, we accept one or two if we have stock.
    4
    Do you provide customzied painting?
    Yes, we can do that. We have our own painting workshop. Just share with us your painting design and decals.
    5
    What is your normal lead time?
    Our lead time is 15-20 days if we have stock for customzied painting. It will need 60 working days without stock.
    6
    What is the warranty time?
    We have two years warranty for the frame, one year for the fork, post and bar. Only the products have manufacturer defect.
    7
    Which test you do for the frame?
    All frames will be passed ISO4210 test standard before production. And we will test each frame's stiffness before painting.
    8
    Do you accept private mould?
    Yes, we have desigers and R&D department in our factory. We do OEM/ODM service for many famous brands in USA, EU, Canada.
