More Than15 Years Carbon Fiber Bike Frame Manufacturer In China - Mondince

120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 1
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 2
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 3
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 4
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 5
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 1
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 2
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 3
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 4
120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248 5

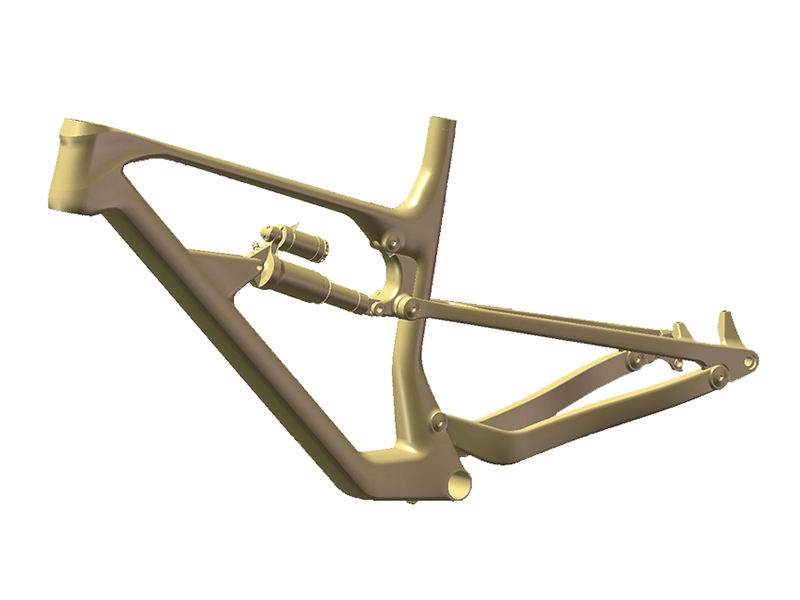

120MM Travel 12*148MM Boost BSA Fully Internal Routing Suspension MTB Bike Frame FM248

Key Features:

● FULLY INTERNAL CABLE ROUTING

BSA

POST MOUNT 160MM DISC BRAKE

HEADTUBE:1-/2" ( UP AND DOWN)

    oops...!

    no product data.

    Go to homepage

    Product Specifications

    Frame Type Full Suspension MTB Frame
    Color All Color Avaliable
    Material Toray T800/T1000
    Carbon Weave UD/3K
    Frame Size 15.5''/17.5''/19''/21''
    Weight 2150/+-30g (15.5'')
    Fork Fox Or Rock Shock 120MM Travel
    Seatpost  31.6MM
    Handlebar 660/680/700/720MM
    Headtube 1-1/8'' Up, 1-1/2''Down
    Bottom Bracket BB92
    Max Tire 27.5*3.0''/29*2.3''
    Disc Brake Post Mount 160MM
    Dropout  15*100MM Front/12*148MM Rear
    Test Standard ISO4210
    Waranty Two Years

    Size Chart

    Pro7-5

    Detail Picture

    Pro7-6
    Pro7-6
    Pro7-7
    Pro7-7
    Pro7-8
    Pro7-8
    Pro7-9
    Pro7-9
    Pro7-10
    Pro7-10

    FAQs

    1
    What is the quality of your material?
    All our carbon fiber is Toray T800 and T1000 carbon fiber. The stiffness and surface are very good.
    2
    Are you a factory or trading company?
    Of course, we are factory located in Huizhou from 2007. Please feel free to work with us. Good quality, fast respond, competitive price.
    3
    What is the MOQ per model?
    Our MOQ per model is 50 sets. You can order different sizes. As for samples, we accept one or two if we have stock.
    4
    Do you provide customzied painting?
    Yes, we can do that. We have our own painting workshop. Just share with us your painting design and decals.
    5
    What is your normal lead time?
    Our lead time is 15-20 days if we have stock for customzied painting. It will need 60 working days without stock.
    6
    What is the warranty time?
    We have two years warranty for the frame, one year for the fork, post and bar. Only the products have manufacturer defect.
    7
    Which test you do for the frame?
    All frames will be passed ISO4210 test standard before production. And we will test each frame's stiffness before painting.
    8
    Do you accept private mould?
    Yes, we have desigers and R&D department in our factory. We do OEM/ODM service for many famous brands in USA, EU, Canada.
