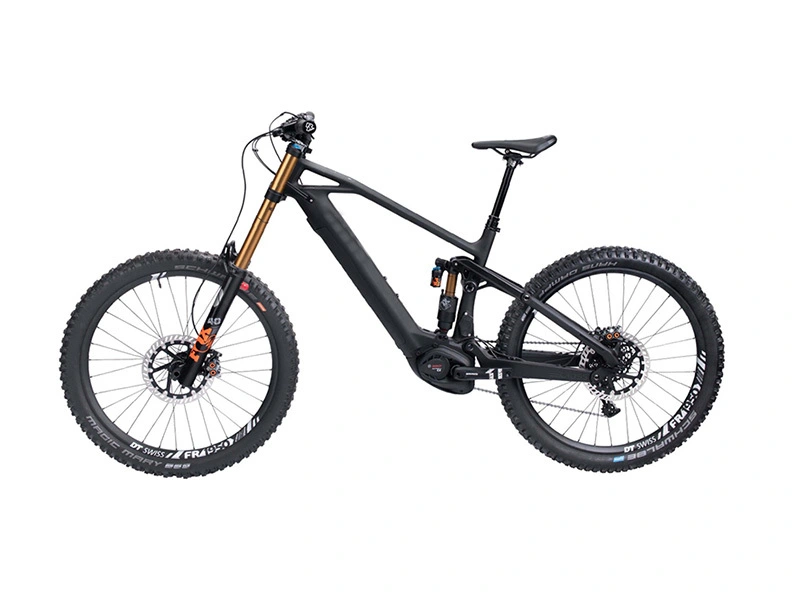

Bafang M620 Motor 1000W 200MM Travel Full Suspension Ebike Frame FM408
Key Features:
INTERNAL CABLE ROUTING
BAFANG M620 1000W MOTOR
POST MOUNT 160MM DISC BRAKE
HEADTUBE: 1-1/8''(UP)1-/2" ( DOWN)
48V 17AH INTEGRATED BATTERY
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Frame Type | Bafang M620 Ebike Suspension Frame |
| Color | All Color Avaliable |
| Material | Toray T800/T1000 |
| Carbon Weave | UD/3K |
| Frame Size | M/L/XL |
| Weight | 3500/+-30g (L) |
| Fork | Fox Or Rock Shock 200MM Travel |
| Seatpost | 31.6MM |
| Rear Shock | 230*65/60MM |
| Headtube | 1-1/8'' Up, 1-1/2'' Down |
| Bottom Bracket | Bafang M620 |
| Max Tire | 27.5*3.0'' |
| Disc Brake | Post Mount160MM Front And Rear |
| Dropout | 15*110MM Front/12*148MM Rear |
| Test Standard | ISO4210 |
| Waranty | Two Years |
Size Chart
Detail Picture
Exess-HP【蓝色】 (4)
Exess-HP【蓝色】 (3)
Exess-HP【绿色】 (5)
Exess-HP【绿色】 (2)
Exess-HP【蓝色】 (3)
FAQs
1
What is the quality of your material?
All our carbon fiber is Toray T800 and T1000 carbon fiber. The stiffness and surface are very good.
2
Are you a factory or trading company?
Of course, we are factory located in Huizhou from 2007. Please feel free to work with us. Good quality, fast respond, competitive price.
3
What is the MOQ per model?
Our MOQ per model is 50 sets. You can order different sizes. As for samples, we accept one or two if we have stock.
4
Do you provide customzied painting?
Yes, we can do that. We have our own painting workshop. Just share with us your painting design and decals.
5
What is your normal lead time?
Our lead time is 15-20 days if we have stock for customzied painting. It will need 60 working days without stock.
6
What is the warranty time?
We have two years warranty for the frame, one year for the fork, post and bar. Only the products have manufacturer defect.
7
Which test you do for the frame?
All frames will be passed ISO4210 test standard before production. And we will test each frame's stiffness before painting.
8
Do you accept private mould?
Yes, we have desigers and R&D department in our factory. We do OEM/ODM service for many famous brands in USA, EU, Canada.
